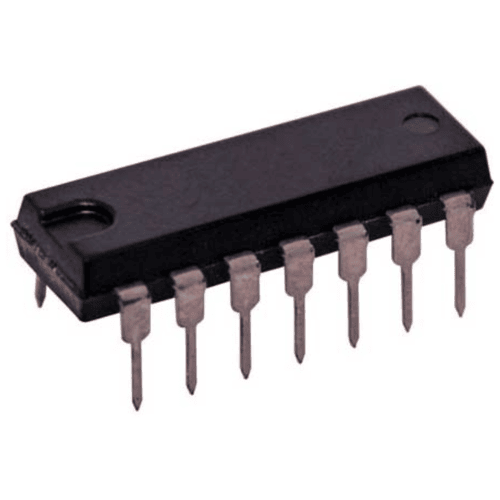

LM565 Phase Locked Loop IC

Phase Locked Loop Specification:

  1. Voltage : 12V
  2. Frequency : 500kHz
  3. Temperature : 0°C~70°C
  4. No. of Pins : 14
  5. Package : DIP

338.98 GST Excluding

SKU: SRK-003299Categories: Converter

Additional Information

The LM565 are general purpose phase locked loops containing a stable, highly linear voltage controlled oscillator for low distortion FM demodulation, and a double balanced phase detector with good carrier suppression. The VCO frequency is set with an external resistor and capacitor, and a tuning range of 10:1 can be obtained with the same capacitor. The characteristics of the closed loop system — bandwidth, response speed, capture and pull in range — may be adjusted over a wide range with an external resistor and capacitor. The loop may be broken between the VCO and the phase detector for insertion of a digital frequency divider to obtain frequency multiplication.

Applications:

Data and tape synchronization

Modems

FSK demodulation

FM demodulation

Frequency synthesizer

Tone decoding

Frequency multiplication and division

SCA demodulators

Telemetry receivers

Signal regeneration

Coherent demodulators


Package Includes:

1 x LM565 Phase Locked Loop IC
