APM Pixhawk Power Module with XT60 Connector-srkelectronics.in.png
Robotics & drone · Drone Accessories

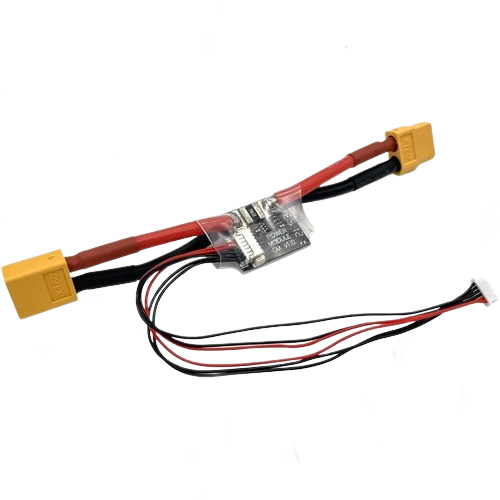

APM Pixhawk Power Module with XT60 Connector

SKU SRK-00320 In stock
6-28V DC 90A
₹649.00

Including 18% GST. Tax invoice with every order.

Same-day dispatch closes in --:--:-- — order now and it leaves the counter this morning.
  • Stocked at our Bengaluru counter, not drop-shipped — checked against your order before packing.
  • GST tax invoice on every order. Add your GSTIN at checkout.
  • Cash on delivery on orders under ₹5,000. Returns follow our return policy.
Not sure it's the right part? Ask the counter on WhatsApp

The APM Pixhawk Power Module with XT60 Connector offers a straightforward solution for powering your APM 2.5 with a clean supply from a LiPo battery, while also measuring current consumption and battery voltage through a 6pin cable. This module features an on board switching regulator that delivers 5.3V at a maximum output of 2.25A, compatible with 2S-6S LiPo batteries. It comes fully assembled with Deans connectors and is encased in protective shrink tubing for added durability.

Note:

The Power Module is only designed to power APM, an RC receiver and APM accessories (GPS, 3DR radio). It is not designed to power the servos. Use your aircraft’s own ESC/BEC for that.


Package Includes :

1 x APM Pixhawk Power Module with XT60 Connector

Key features

  • Voltage and current measurement configured for 5V ADC
  • Switching regulator outputs 5.3V and 3A max
Input Voltage Range
6-28V DC
Max current sensing
90A
