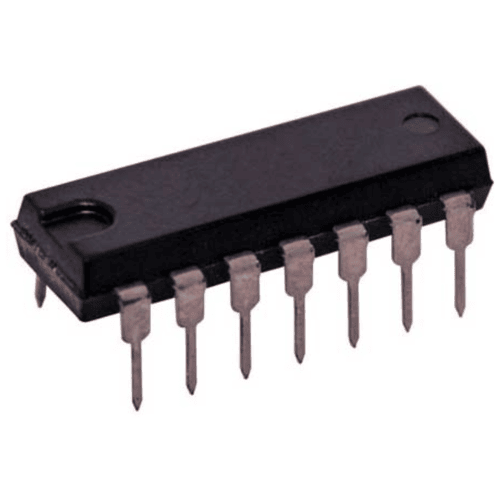

7495 (74HC95) 4 Bit Parallel Access Shift Register IC

Supply voltage : 4.75V-5.25V
HIGH level input voltage : 2V
LOW level input voltage : 0.8V
HIGH level output current : -0.8mA
LOW level output current : 16mA
Clock frequency : 25MHz
Temperature : 55°C~125°C
Number of Pins : 14
Package : DIP

Original price was: ₹150.00.Current price is: ₹127.12. GST Excluding

SKU: SRK-002018Categories: 74 Series

Select Below Products To Add Together

14Pin DIP IC Socket Base Round Pin Hole

Original price was: ₹15.00.Current price is: ₹12.71. GST Excluding

14Pin DIP IC Socket Base

Original price was: ₹7.00.Current price is: ₹5.93. GST Excluding

Additional Information

Description

74HC95 is a 4 Bit Shift Register with serial and parallel synchronous operating modes. The serial shift right and parallel load are activated by separate clock inputs which are selected by a mode control input.

The data is transferred from the serial or parallel D inputs to the Q outputs synchronous with the HIGH to LOW transition of the appropriate clock input. The HC95 is fabricated with the Schottky barrier diode process for high speed and is completely compatible with all Motorola TTL families.
